Land Rover Engines

Image Model Engine Code Type Valves Actual CC Power Kw / hp Year Range Action
Defender Cabrio Engine Defender Cabrio 37 L 3.9 4x4 16 3947 cc 134 kw / 182 hp 1990-Continue
Defender Pickup Engine Defender Pickup M52 B28 2.8 4x4 24 2793 cc 140 kw / 190 hp 1995-Continue
Defender Pickup Engine Defender Pickup 37 L 4.0 4x4 16 3947 cc 134 kw / 182 hp 1995-Continue
Defender Platform/Chassis Engine Defender Platform Chassis ZSD-424 2.4 TD4 4x4 16 2402 cc 90 kw / 122 hp 1990-Continue
Defender Station Wagon Engine Defender Station Wagon 23 L 2.5 TD 4x4 (L316) 8 2495 cc 83 kw / 113 hp 1990-Continue
Defender Station Wagon Engine Defender Station Wagon M52 B28 2.8 4x4 24 2793 cc 140 kw / 190 hp 1990-Continue
Defender Station Wagon Engine Defender Station Wagon 37 L 3.9 4x4 (L316) 16 3947 cc 134 kw / 182 hp 1990-Continue
Discovery 2 Engine Discovery 2 56 D 4.0 4x4 16 3947 cc 136 kw / 185 hp 1998-2004
Discovery 2 Engine Discovery 2 46 D 4.6 4x4 16 4553 cc 165 kw / 224 hp 1998-2004
Discovery 3 Engine Discovery 3 276DT 2.7 TD 4x4 V 24 2720 cc 140 kw / 190 hp 2004-2009
Discovery 3 Engine Discovery 3 406PN 4.0 4x4 24 4009 cc 156 kw / 212 hp 2004-2009
Discovery 3 Engine Discovery 3 406PN 4.0 V6 4x4 24 4009 cc 156 kw / 212 hp 2004-2009
Discovery 3 Engine Discovery 3 448PN 4.4 4x4 32 4394 cc 220 kw / 299 hp 2004-2009
Discovery 4 Engine Discovery 4 276DT 2.7 TD 4x4 V 24 2720 cc 140 kw / 190 hp 2009-Continue
Discovery 4 Engine Discovery 4 30DDTX 3.0 SDV6 4x4 V 24 2993 cc 155 kw / 211 hp 2009-Continue
Discovery 4 Engine Discovery 4 30DDTX 3.0 TD 4x4 V 24 2993 cc 155 kw / 211 hp 2009-Continue
Discovery 4 Engine Discovery 4 30HD0D 3.0 4x4 24 2995 cc 250 kw / 340 hp 2009-Continue
Discovery 4 Engine Discovery 4 508PN 5.0 4x4 32 4999 cc 276 kw / 375 hp 2009-Continue
Discovery Sport Engine Discovery Sport 204DTD 2.0 D 16 1999 cc 110 kw / 150 hp 2014-Continue
Discovery Sport Engine Discovery Sport 204DTD 2.0 D 4x4 16 1999 cc 110 kw / 150 hp 2014-Continue
Discovery Sport Engine Discovery Sport 224DT 2.2 D 4x4 Straight 16 2179 cc 110 kw / 150 hp 2014-Continue
Discovery 5 Engine Discovery 5 204DTD 2.0 D 4x4 16 1999 cc 110 kw / 150 hp 2016-Continue
Discovery 5 Engine Discovery 5 306DT 3.0 D 4x4 24 2993 cc 155 kw / 211 hp 2016-Continue
Discovery 5 Engine Discovery 5 306PS 3.0 4x4 24 2995 cc 250 kw / 340 hp 2016-Continue
Freelander 2 Engine Freelander 2 DW12BTED4 2.2 eD4 Straight 16 2179 cc 110 kw / 150 hp 2006-2014
Freelander 2 Engine Freelander 2 224DT 2.2 SD4 4x4 Straight 16 2179 cc 110 kw / 150 hp 2006-2014
Freelander 2 Engine Freelander 2 DW12BTED4 2.2 TD4 4x4 Straight 16 2179 cc 110 kw / 150 hp 2006-2014
Freelander 2 Engine Freelander 2 204PT 2.0 Si4 4x4 16 1999 cc 176 kw / 240 hp 2006-2014
Freelander Soft Top Engine Freelander Soft Top 204D3 2.0 TD4 4x4 16 1951 cc 80 kw / 109 hp 1998-2006
Freelander Soft Top Engine Freelander Soft Top 18 K4F 1.8 4x4 16 1796 cc 85 kw / 116 hp 1998-2006

Replacement Land Rover Engine Specialists

Having your own engine reconditioned has several important advantages:

  1. Client maintains their original engine number so there is no need to contact DVLA to process administration changes on the vehicle logbook
  2. Modern vehicle engines have a large number of variations and specs, having your own engine avoids these compatibility issues
  3. Once the engine is stripped down and prepped for rebuilding, Royal Rebuilds experienced technicians diagnose the block, head and internals. This is a crucial part of the rebuild and in many occasions the cause of failure can be identified. Understanding the route cause can be very helpful for the client to minimise future risks.

The Reconditioning Service We Offer

A full engine rebuild carried out by ourselves includes all the following components to be replaced on the engine block with brand new approval parts:

  • Oil pump
  • Piston rings
  • Main ends and big end bearings
  • Crankshaft
  • Liner honed or re-bored
  • Full gasket set

Also the Cylinder Head(s) will be reconditioned in house which includes:

  • Pressure testing
  • Valves and seats being refaced
  • Brand-new valve stem Seals
  • Head gasket(s)
  • Camshafts
  • Tappets/hydraulic lifters
  • Cam-carrier

A new timing chain or timing belt will also be installed.

Reconditioning Process Explained

Dismantling

Each engine is first stripped down to its bare components. Using specialist cleaning equipment (Kerosene bath and high temperature solvent washer) all engine components are degreased and thoroughly cleaned.

Machining

After disassembling the units they are then sent for machining where all engine block cylinders are professionally honed, All cylinder heads are pressure tested, skimmed, valve seats are cut and all valves are resurfaced.

Assembly

In assembly stage of the engine reconditioning process, brand new Eristic gaskets are used, ACL bearings are used for the mains and big ends and gas nitride piston rings are fitted to ensure quality parts are used throughout. Crankshaft journals are checked and measured to assess condition and then are polished or reground where necessary Also the engine is timed up with a brand new timing kit.

Quality Control

All throughout the assembly process strict quality control measures are enforced. All measurements are double checked to make sure the final product is reliable for years to come.

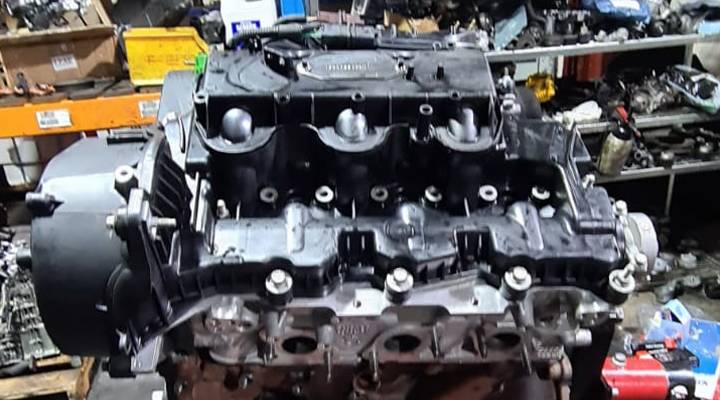

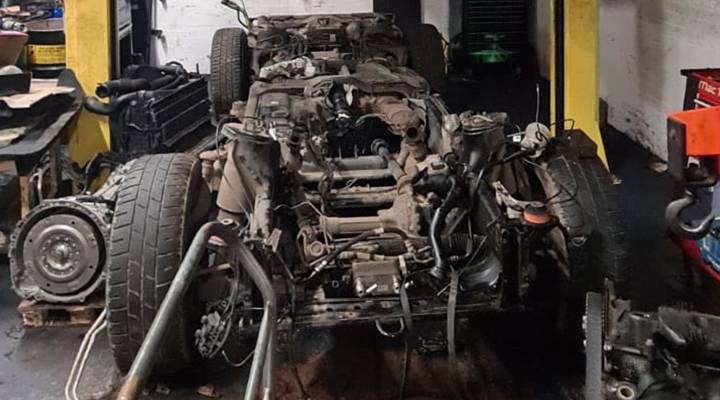

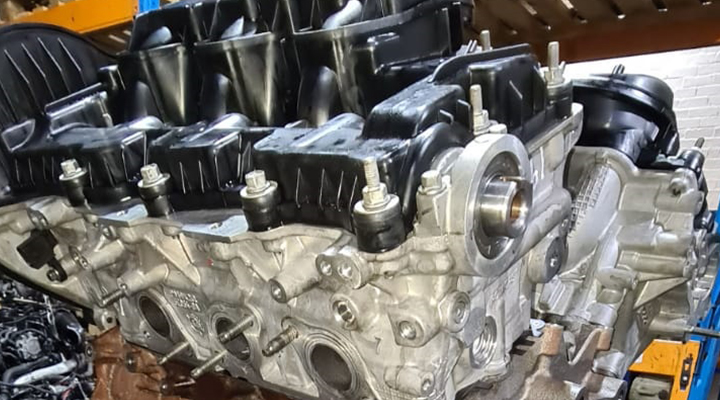

Our Workshop Gallery
